Glass Water Bottle Manufacturer: How To Source Elite Solamex Quality?

Introduction

Are your current USA supply chains failing basic thermal shock standards? Brands must partner with a proven glass water bottle manufacturer to source premium high-grade borosilicate materials. We explain the exact manufacturing specifications, rigorous compliance metrics, and structural integrity requirements needed for securing high-end hydration merchandise across your commercial distribution pipelines and global retail networks.



Evaluating Core Material Standards From A Glass Water Bottle Manufacturer!

An applied commercial procurement relies on certain raw material chemistry for long-term product success. Poor quality glass puts user safety at risk, and it wipes out your brand equity. A top glass water bottle manufacturer uses exclusive high-borosilicate glass formulas in the top-end market, because buyers cannot escape reality by using cheaper soda-lime for high-stress applications.

High-borosilicate glass comes from embedding 15% boron trioxide into a matrix of silica, and the process employs metal oxides to impart strength. This particular chemical additive reduces the coefficient of thermal expansion of the material.

A lower expansion rate ensures the glass matrix stays stable through drastic changes in temperature. Anyone who sources standard glass for hot-beverage applications puts their whole USA supply chain at risk of facing catastrophic failure rates.

I remember visiting a factory floor and seeing standard glass shatter under the testing machines. We hold the same strict material standards for Die Cast Aluminum Cookware to ensure absolute consumer safety.

The Physics Of Extreme Thermal Shock Resistance

Commercial hydration vessels live in a tough and unpredictable environment every single day. Consumers continue to pour boiling water into cold vessels on a routine basis. Commercial treatments go into industrial dishwashers that shoot chemical sterilization cycles at 85°C.

For example, think of a large commercial café clocking maximum thermal cycles on industrial rinse dishwashers. A barista retrieves a hot glass bottle from the sterilization rack, and they fill it with ice water in preparation for a cold-brew order.

This localized tensile stress shatters standard soda-lime glass. High-grade borosilicate resists a temperature differential of 120°C without micro-fracturing or structural failure.

Comparative Material Specifications And Metrics

Procurement managers need to require empirical chemical information from trusted suppliers before making decisions. The table below presents the raw data differentiating premium industrial-grade glass from commercial-grade alternatives.



Material Property	High Borosilicate Glass 3.3	Standard Soda-Lime Glass
Coefficient of Expansion	3.3 × 10⁻⁶ K⁻¹	9.0 × 10⁻⁶ K⁻¹
Thermal Shock Limit	120°C - 150°C	Maximum 40°C
Silicon Dioxide Content	80%	70%
Density	2.23 g/cm³	2.52 g/cm³



• High Borosilicate Formulation: Engineers added an excessive amount of boron trioxide for optimal thermal stability and chemical degradation resistance over time.

• Maximum Temperature Thresholds: The material maintains a temperature over 400°C for sustained periods without warping or softening.

• Chemical Inertness Parameters: The material is non-reactive to acidic drinks like coffee, and the glass prevents the leaching of heavy metals. FDA guidelines note, packaging materials need rigorous testing to prevent chemical migration.



How A Premium Glass Water Bottle Manufacturer Controls Wall Thickness?

Factories take advantage of thinner glass for greater profit margins, but brands ensure their devices go down in catastrophic failure rates. A leading glass water bottle manufacturer sets precise requirements for wall thickness that workers determine using an automatic laser measurement system.

Machine operators must calibrate internal air pressure within micro-seconds tolerance time so they ensure the correct distribution of glass across the mold cavity. This difference in thickness leads to a crucial concentration of stress, and it happens at the bottle shoulder and at the heel.

In my experience managing USA supply chains, I often see brands lose thousands on broken shipments. Consequently, precision matters just like it does in Classic White Shallow Casserole product designs.

Minimum Tolerances For Viable Commercial Deployment

Do your current procurement specifications demand the exact durometer rating for the silicone seals? Without this technical data, buyers open themselves up to large-scale leaks across their whole product family. Brands must engineer wall thickness with the exact same rigor to ensure product safety.

• The Absolute Minimum Tolerance: Buyers must forget anything under 2.8mm, because the basic physics of kinetic drop-test dictate this is unsafe and invites liability.

• The Commercial Retail Standard: The 3.5mm thickness provides the ideal blend of tactile product weight required versus the need for impact resistance in consumer commute use-cases.

• The Heavy-Duty Specification: Brands demand a thickness at 5.0mm when they target the outdoors, because this requires maximum structural integrity against blunt force.

CNC Machining Protocols In Mold Production

The valley of quality takes shape in the molder cloakroom, so the output quality depends on their mold engineering skills. Today, 5-axis CNC machining centers carve the main body of a bottle mold from cast iron, bronze, or aviation-grade aluminum alloys. CNC precision prevents annoying seam-line defects from appearing on the final commercial product. Bad molds leave sharp and ugly seams along the side of the bottle. These seams act as aesthetic defects and microscopic weak points that burst under pressure.



The High-Temperature Execution!

An understanding of the active factory floor separates amateur buyers from professional sourcing executives. A super premium glass water bottle manufacturer performs a rigorous mix of heavy industry and surgical art. When I audited my first glass supplier, the heat from the melting furnace was staggering.

Melting And Pneumatic Forming Protocols

The process of manufacturing starts in a massive electric melting furnace working at 1600°C. At this high temperature, the raw silica, boron, and recycled cullet melt together into a homogeneous dough. Machines slice the molten glass stream into gobs that match the exact weights of the equipment.

Fast-moving pneumatic arms transport these glowing blobs into the blank molds. These forming machines must ensure an always-on calibration of pressure as the line runs at more than 100 units per minute. This careful process prevents any compromise to the overall structural integrity of the bottles.

The Critical Annealing Lehr Phase

Molten glass creates huge internal molecular stress during the rapid cooling process. Thermal contraction causes the newly formed bottle to explode upon cooling at normal room temperature. Now picture this exact scenario happening to your logistics business.

Logistics teams receive a shipment of 10,000 units in which 15% of the inventory breaks during transport due to inadequate annealing at the factory. In an instant, the business loses the product cost, the freight capital, and your USA retail distribution contracts. Factories place the newly created containers in an uninterrupted annealing lehr.

This tunnel furnace remains hot for the glass at around 560°C before cooling it in a mathematical model. That slow-cooling process alleviates all the internal stress in the molecular levels, and it provides a lifetime permanence.

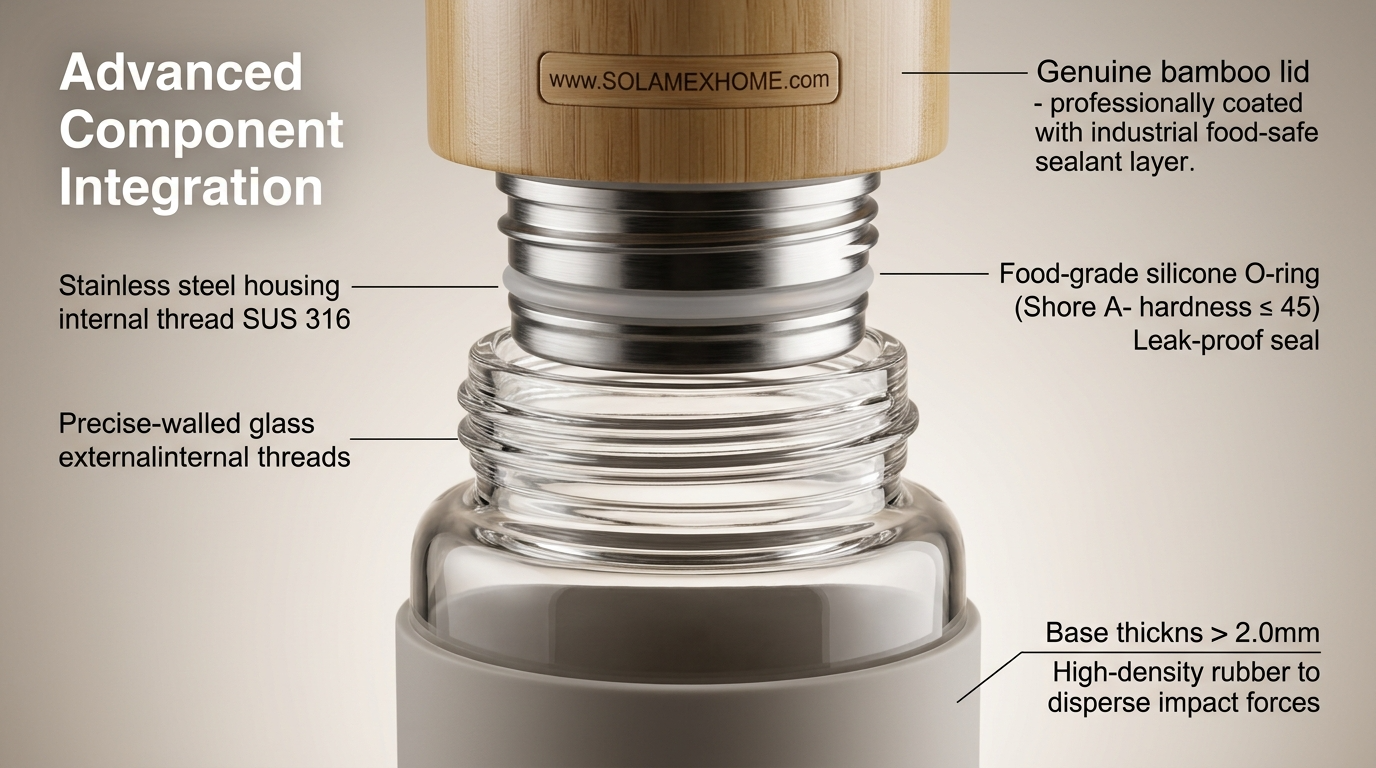

Advanced Component Integration!

A hydration bottle functions as a sealed and secure mechanical system for the end user. A glass body is meaningless if the sealing mode fails during transit. Trustworthy glass water bottle manufacturers design lids, gaskets, and sleeves to precise diametric tolerances. Furthermore, we apply these same engineering tolerances to the Reserve Pro Ceramic Nonstick Cookware Set to guarantee ultimate consumer performance.

Precision Engineering The Sealing Architecture

Leak prevention and optimal user experience depend on the integrated thread design. The external glass thread pitch must match with the internal threads of the cap housing. This match helps the factories ensure smooth and reliable operations for the end consumer.

• Silicone O-Ring Specifications: Brands must require food grade silicone with a Shore A hardness rating between 40 and 50 for maximal compression memory.

• Stainless Steel Housings: Engineers must indicate SUS 304 or SUS 316 stainless steel for internal lid components to reduce long-term acidic corrosion from fruit-infused waters.

• Bamboo Lid Moisture Control: The factory has to coat organic bamboo with an industrial food-safe sealant layer to prevent mold from growing inside that condensation.

Protective Sleeve Impact Dynamics

The protective sleeves consist of silicone and neoprene, which absorb destructive kinetic energy. The factory must mold these external sleeves from a type of vulcanized rubber known as high-density rubber.

• Base Thickness Requirements: A recommended sleeve thickness of more than 2.0mm at the base is necessary to disperse impact forces away from the weak glass heel.

• Thermal Insulation Metrics: Silicone sleeves provide the required thermal insulation, so a liquid can boil without causing burn injuries when handled by the user.



Why The Manufacturer Must Provide FDA Compliance?

Ignoring the established rules leads to customs seizures and huge product liability lawsuits. We cannot import food-contact products into USA marketplaces with unverified laboratory certificates. An established glass water bottle manufacturer delivers up-to-date and unabridged third-party lab tests.

How much money are you bleeding each year handling returns from busted low-quality glass? Companies can recover this lost capital by removing low-return suppliers, maintaining your brand reputation stability.

Global Regulatory Standards Comparison Matrix

The toxicity limits of the USA FDA and Europe LFGB are different from one another. The LFGB acts as the world's most stringent standard for materials with a food-contact application.



Regulatory Standard	Target Jurisdiction	Core Testing Metric	Compliance Difficulty
FDA 21 CFR 175.300	USA & North America	Raw material formulation safety limits	Moderate
LFGB Section 30 & 31	Germany & European Union	Comprehensive heavy metal migration limits	Extremely High
Proposition 65	California, USA	Lead and Cadmium leaching thresholds	High

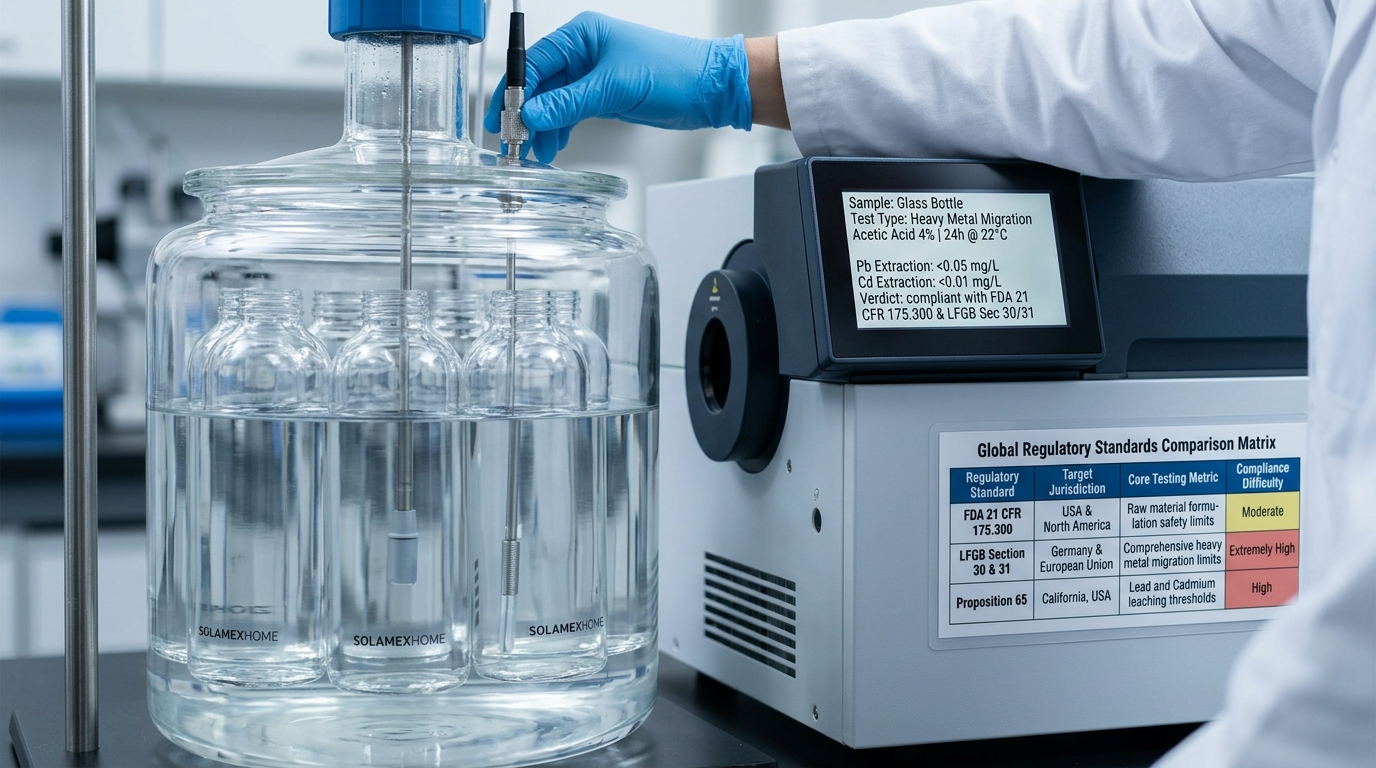

Destructive Heavy Metal Migration Protocols

Technicians test the glass samples using 4% acetic acid solutions maintained for 24 consecutive hours at 22°C. Afterward, the extraction liquid undergoes analysis by mass spectrometry machines.

• Maximum Lead Thresholds: The extraction process must show less than 0.05 mg/L of lead to pass the basic commercial safety thresholds.

• Strict Cadmium Limits: The cadmium levels must not exceed 0.01 mg/L to count with the access of the regulated European market.

• BPA Free Certification: Workers subject all silicone and plastic components in contact with the food to rigorous extraction testing to ensure no Bisphenol-A leaching.



Identifying Immediate Red Flags With The Manufacturer!

Buyers must execute aggressive and unapologetic supplier audits for all of your wholesale procurement needs. Are you willing to risk your brand reputation on unverified laboratory certificates? The slips in processing of an incompetent glass water bottle manufacturer will show up in the physical product.

Optical Distortion And Material Purity Checks

Under bright fluorescent lighting, your sample bottle will shine bright against a straight grid pattern. If the grid lines warp, it comes down to bad glass distribution and improper thermal management.

• Identifying Seeds And Blisters: Examine the glass matrix for very small air bubbles that are entrapped in the form of seeds and blisters. These tiny imperfections indicate poor melting temperatures happening within a high-capacity factory furnace.

• Spotting Striae Defects: Look for visible streaks in the glass body that look like cord-like lines. This visual defect gives conclusive proof that the factory did not mix the individual silica raw materials.

• Checking Base Unevenness: Place the bottle on a dead level granite surface block to test for stability. If it rocks by a tenth of a millimeter, the mold base must undergo CNC-recalibration.



Future Automation Trends!

The landscape of industrial manufacturing is evolving and pushing into the digital age. One forward-thinking glass water bottle manufacturer got ahead of the curve by pouring resources into digital factory infrastructure. They built automated quality control loops so they could bring down human error rates. Thus, we use similar automated visual checks for the Tri-Ply Hybrid Mirror Series production lines.

Automated Optical Inspection Systems

Human inspectors experience eye fatigue and subjective judgment over long periods of time. State-of-the-art plants use automated optical inspection systems to catch these errors and improve quality.

High-speed industrial cameras collect high-resolution images of 360-degrees around each individual bottle on the conveyor belt.

Machine learning algorithms analyze these detailed images in mere milliseconds. The system activates a pneumatic jet to reject any bottle that displays micro-cracks, dimensional irregularities, or trapped debris.



Top 5 FAQs!

What Is The Minimum Order Quantity For Custom Molds?

Tier-one factories need 3000 to 5000 pieces as an MOQ per custom shape. They need this volume in order to recoup heavy CNC machining setup costs and furnace calibration time.

Can High-Grade Borosilicate Glass Survive Freezing Temperatures?

Yes, high-grade borosilicate glass survives freezing temperatures down to -20°C. Users must leave 10% headspace for liquid expansion, otherwise the frozen glass will shatter.

How Do Manufacturers Print Logos Permanently On Glass?

Manufacturers use high temperature silk-screen printing technology at the industrial factories. They bake specialty ceramic ink at temperatures reaching 600°C, which bonds the logo with the surface forever.

Do Modern Factories Utilize Recycled Glass Cullet?

Yes, modern factories use a 20% mix of recycled glass cullet going into the hot furnace. This reduces the required melting temperature and saves huge amounts of energy consumed in factories. Environmental experts state, melting recycled glass drastically lowers energy consumption and emissions.

How Do I Verify Official FDA Compliance Laboratory Claims?

Procurement managers must ask for the complete non-edited laboratory test report from independent third parties. Buyers should check the date from trusted agencies such as SGS, Intertek, or TUV Rheinland without exception.



Conclusion

Stop taking brittle and irregular inventory that breaks at the slightest temperature change. Ordering from a trusted glass water bottle manufacturer will ensure that safe materials are used and longevity is guaranteed. Secure your bulk order with precision engineering today. Partner with SolamexHome to lock in superior wholesale production rates for your business growth now.
